Dual-threat soft armour

Stab and ballistic protection in a low-profile vest.

A flexible armour system combining UDPE and aramid composite layers for selected handgun and edged-weapon threats, subject to the specified configuration and test conditions.

Request product information View specifications

Final protection, fit and coverage depend on the complete vest configuration, size and applicable test conditions.

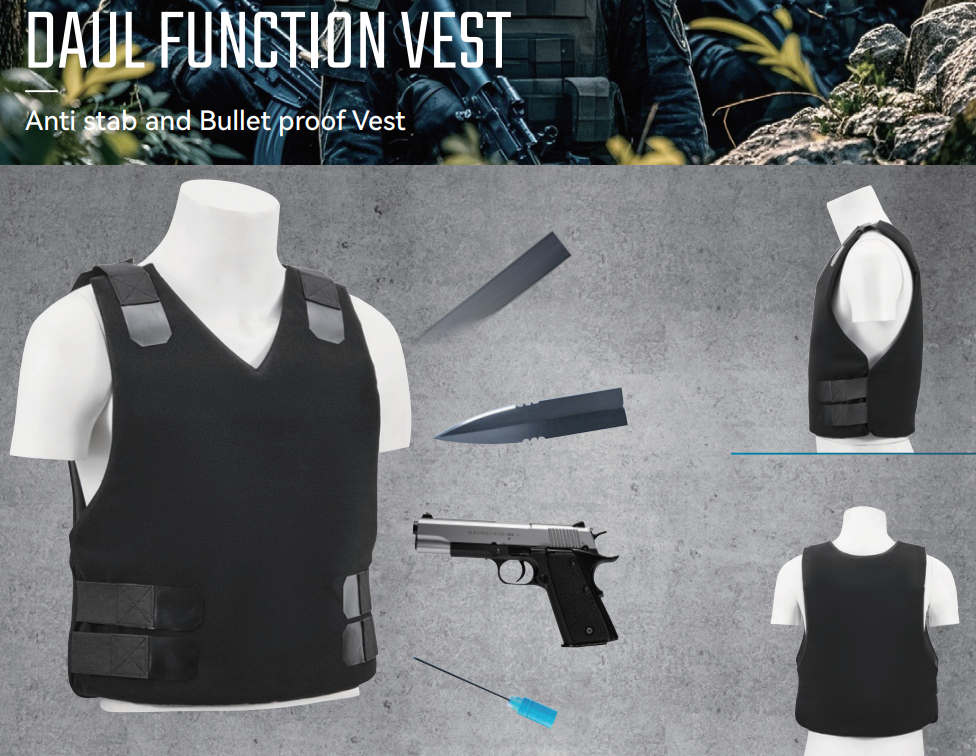

CHIHAN dual-function anti-stab and ballistic protection vest

Dual-function vest configuration

CHIHAN / DUAL THREAT / 02

6.81 mmMeasured panel thickness

Level IIIAStated NIJ 0101.06 ballistic level

Level 1 · 24 JNIJ 0115.00 stab test level

One wearable system

Designed for two distinct protection roles.

The soft panel is intended to combine ballistic and stab resistance while maintaining a slim profile. Performance claims apply only to the tested materials, construction and conditions.

Ballistic protection

Product documentation states NIJ 0101.06 Level IIIA protection for handgun threats including 9 mm FMJ and .44 Magnum.

Stab resistance

A supplied laboratory report records NIJ 0115.00 Level 1 testing at the 24 J energy level using P1 and S1 blade threats.

Low-profile construction

The supplied thickness measurement records 6.81 mm for the soft panel, supporting a flexible and concealable format.

Composite construction

UDPE and aramid fibre in a flexible soft panel.

The product specification identifies a composite of UDPE and aramid fibre with an areal density of 1.30 lb/ft², approximately 6.35 kg/m². The panel is enclosed in a durable, water-resistant protective cover.

Soft armour panel for wearable vest integration
Composite UDPE and aramid fibre construction
Low-profile thickness below 7.0 mm
Stated service period of seven years under standard storage and usage conditions

Fabric thickness gauge showing a 6.81 millimetre panel measurement in a professional materials laboratory — Supplied 6.81 mm thickness measurement

Supplied test evidence

24 J Level 1 stab-resistance test.

Oregon Ballistic Laboratories report 38838 records testing on 24 February 2025 for sample model DV25631. Recorded results include penetration below 1 mm or no penetration for the listed P1 and S1 impacts at 0° and 45°.

Oregon Ballistic Laboratories stab resistance test report for sample model DV25631 — Supplied laboratory test summary for the identified sample

Ballistic test results

Level IIIA handgun-threat test summaries.

The supplied records list modified NIJ-STD-0101.06 Level IIIA testing with 9 mm 124 gr FMJ and .44 Magnum 240 gr SJHP projectiles. Both summaries state that the tested sample satisfied the ballistic requirements given.

.44 MAGNUM 240 gr SJHP

Required velocity: 1,430 ± 30 ft/s
Recorded averages: 1,411–1,437 ft/s
Recorded BFS: 33.79–37.97 mm
Penetration notation: 6 × PP

9 MM 124 gr FMJ

Required velocity: 1,470 ± 30 ft/s
Recorded averages: 1,471–1,497 ft/s
Recorded BFS: 26.47–29.56 mm
Penetration notation: 6 × PP

Supplied modified NIJ-STD-0101.06 Level IIIA ballistic test summary for 44 Magnum 240 grain SJHP ammunition — .44 Magnum 240 gr SJHP · supplied ballistic test summary

Supplied modified NIJ-STD-0101.06 Level IIIA ballistic test summary for 9 millimetre 124 grain FMJ ammunition — 9 mm 124 gr FMJ · supplied ballistic test summary

PP denotes partial penetration in the supplied records. The tables also note that the customer modified layers before testing continued; results apply only to the identified samples, configurations and recorded test conditions. Select either report to view it full size.

Technical overview

Baseline product specifications.

Product: Anti-Stab and Ballistic Protection Vest
Ballistic level: NIJ 0101.06 Level IIIA, as stated in supplied product documentation
Stab level: NIJ 0115.00 Level 1 at 24 J for the identified test sample
Threat examples: 9 mm FMJ and .44 Magnum ballistic threats; P1 and S1 blade threats
Material: Composite UDPE and aramid fibre
Areal density: 1.30 lb/ft², approximately 6.35 kg/m²
Panel thickness: 6.81 mm measured; specified below 7.0 mm
Protective cover: Durable, water-resistant cover
Service period: Seven years under stated storage and usage conditions
Documentation: Detailed ballistic and stab-resistance records available for qualified review

Scope of protection

Protection depends on the complete panel and carrier configuration, coverage, fit, condition and test method.
The supplied stab report applies to the identified sample and test conditions; it should not be generalized to untested configurations.
The supplied ballistic summaries apply to the identified samples and modified NIJ-STD-0101.06 test conditions, including the configuration notes recorded in their tables.
Ballistic and stab resistance do not eliminate the risk of injury, blunt-force trauma or uncovered-area exposure.
Final procurement specifications and supporting records should be confirmed before purchase.
